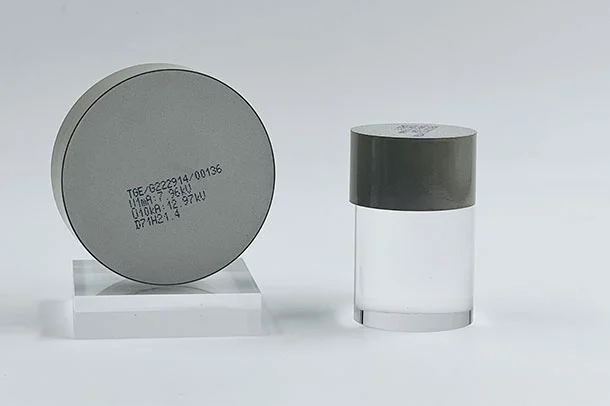

metal oxide varistor

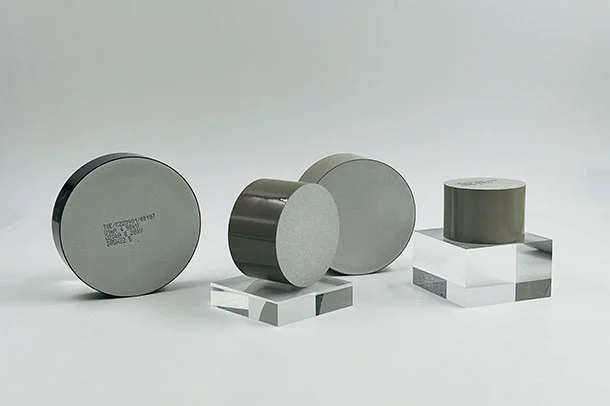

disk varistor

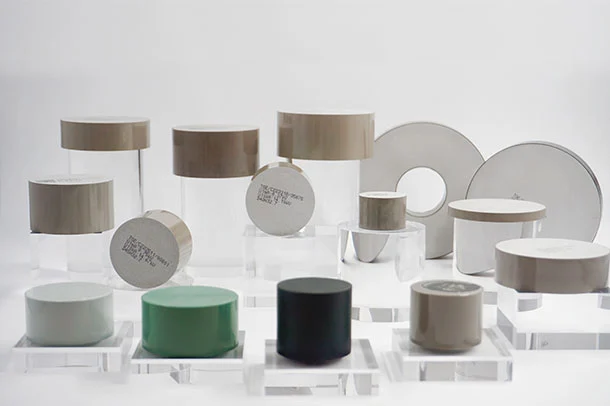

zinc oxide disc

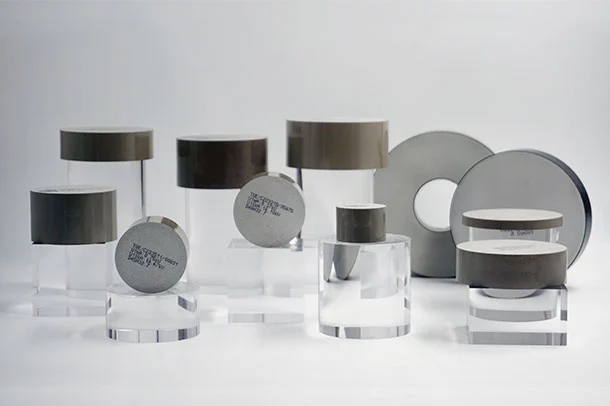

mov varistor

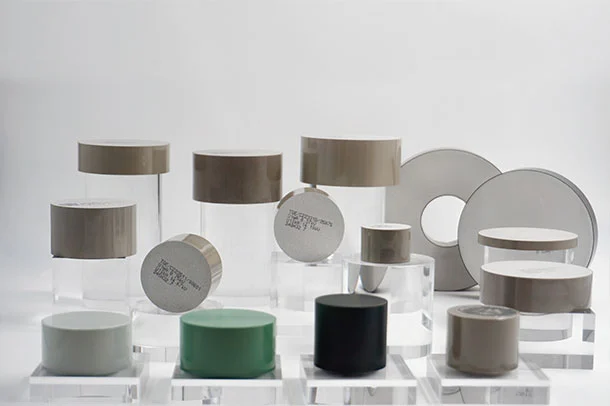

zno blocks
metal oxide varistor
disk varistor
zinc oxide disc
mov varistor
zno blocks

D71H22.5DC MOV Block for DC Arresters

Welcome to D71H22.5DC MOV for DC Arresters. Our MOV block is a top-of-the-line metal oxide varistor that offers superior performance and reliability at an affordable price. The metal oxide varistor is designed to protect DC circuits from transients and overvoltages, which can cause damage to expensive equipment and components. The MOV block is also rated for higher temperatures, making it suitable for applications in harsh environments. Our metal oxide varistor is made with high-quality materials and is tested to UL and CSA standards, ensuring maximum safety. We offer competitive pricing and multiple purchasing options, so you can find the perfect MOV block for your needs.

TGE Specification of D71H22.5 Metal Oxide Arrester Blocks


Type

D71H22.5

Nominal discharge current In kA

10

Suggested rated voltage kV

3.5

Diameter mm

70±1

Height mm

22.5±0.3

AVG Gradient V/mm

220

DC U1mA kV

4.95±0.30

Iref mA

5

Uref kV

3.5

Ures kV

8.17±0.50

8/20uS repetitive charge transfer Qrs C


2ms repetitive charge transfer Qrs C

3

2ms duration of rectangular impulse current A

1500

4/10µs high current test kA

100

Accelerated ageing test Kct

≤ 1.0

Note:

  • The nouns, parameters and corresponding test methods in this parameter list conform to the standards of IEC60099-4:2014 and GB11032-2020.

  • The rated voltage, power frequency reference current and power frequency reference voltage are reference values.

  • The 2ms square wave tolerance value is based on the declared current/2ms repetitive charge transfer charge Qrs=423, if the actual test waveform 2ms current/2mS repetitive charge transfer charge Qrs is not equal to 423, it should be corrected according to the actual 2ms current waveform and Qrs value.

  • The charging rate of the aging test was 90%.

  • The number of pulses for the high current withstand value is two.




Advantages of D71H22.5 MOV for DC Arresters


Advantages of D71H22.5 MOV for DC Arresters


The D71H22.5DC MOV for DC Arresters is a reliable and cost-effective solution to lightning strikes. It is a type of metal oxide arrester that provides superior lightning protection. This lightning arrester price is competitively priced, making it a great choice for residential and commercial buildings alike. The MOV block has been designed to withstand extreme weather conditions, thus offering maximum protection against lightning and surge events. As a top zinc oxide varistor manufacturer, we ensure our D71H22.5DC MOV block for DC Arresters incorporates the metal oxide varistor mov function, providing superior protection against lightning and surge events. Our zno blocks are designed to withstand extreme weather conditions, making them a reliable and cost-effective solution for both residential and commercial buildings.
